The WSM400 PVC Pulverizer Machine is designed for efficient PVC powder processing and plastic recycling applications. It is widely used in PVC pipe production, PVC profile manufacturing, SPC flooring production, and other plastic processing industries. The machine can grind rigid PVC, soft PVC, and recycled PVC materials into fine powder with stable output quality.
Equipped with a 37kW main motor and high-speed grinding system, the WSM400 pulverizer delivers stable performance and efficient production capacity. The blades and toothed plates are made of high-quality carburized quenched steel with HR60 hardness, providing excellent wear resistance and long service life. The final powder size can reach 20-80 mesh according to different production requirements.
The complete machine includes a vibrating feeder, induced draft fan, rotary collector, bag dust collector, vibrating screen, and electrical control cabinet, ensuring continuous operation, clean production conditions, and easy maintenance.
WSM400 PVC Pulverizer Machine for Plastic Powder Processing
High-Efficiency PVC Pulverizer Machine Manufacturer
The WSM400 PVC Pulverizer Machine is designed for high-efficiency plastic powder processing. It is mainly used for grinding PVC materials into fine powder with stable output and uniform particle size. This machine is widely used in PVC pipe production, PVC profile manufacturing, SPC flooring production, plastic recycling plants, and other plastic processing industries.
The machine adopts a high-speed rotating grinding system and wear-resistant grinding components to ensure stable operation and long service life. With a production capacity of 150-200 kg/h, the WSM400 pulverizer is suitable for medium-scale PVC powder processing applications.
Main Features of WSM400 Pulverizer Machine
High Grinding Efficiency
The machine uses a 400 mm grinding disc and 3600 r/min spindle speed to achieve efficient PVC powder processing.
Durable Grinding Components
The toothed plates and blades are made of high-quality carburized quenched steel with hardness up to HR60. This design improves wear resistance and extends service life.
Stable Powder Output
The vibrating screen system helps control powder fineness between 20-80 mesh for stable and uniform output.
Complete Dust Collection System
The machine is equipped with a bag dust collector and induced draft fan to reduce dust pollution during production.
Easy Operation and Maintenance
The compact structure and electrical control cabinet make operation simple and maintenance convenient.
Technical Parameters
| Item | Specification |
|---|---|
| Model | WSM400 |
| Cutter Quantity | 1 Piece |
| Cutter Diameter | 400 mm |
| Toothed Plate | 1 Pair |
| Blade Quantity | 18 Pieces |
| Blade Material | Carburized Quenched Steel |
| Hardness | HR60 |
| Spindle Speed | 3600 r/min |
| Main Motor Power | 37 kW |
| Voltage | 380V / 50Hz |
| Induced Draft Fan Power | 3 kW |
| Shut-off Fan Power | 0.75 kW |
| Vibrating Screen Motor Power | 0.25 kW |
| Powder Size | 20-80 Mesh |
| Capacity | 150-200 kg/h |
| Machine Weight | 1000 kg |

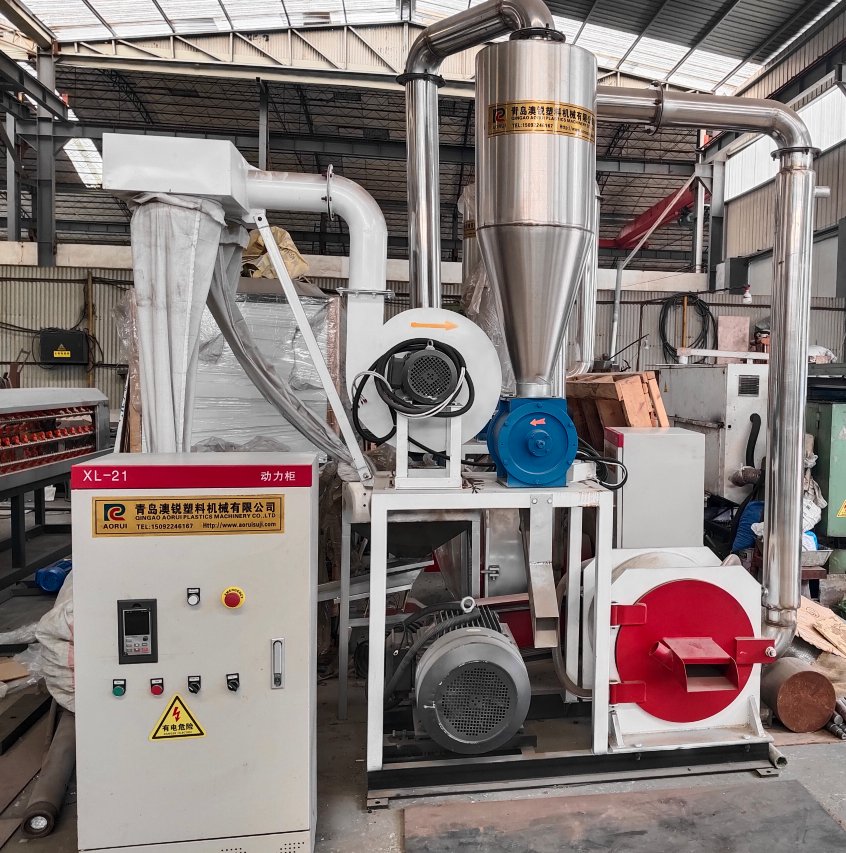

Complete Machine Configuration
The complete WSM400 PVC pulverizer system includes:
Main motor
Vibrating feeder
Shut-off fan
Induced draft fan
Rotary collector with tubes
Electrical control cabinet
Bag dust collector
Vibrating screen
Applications
The WSM400 pulverizer machine is suitable for:
PVC powder production
PVC recycling plants
PVC pipe manufacturing
SPC flooring production
Plastic profile processing
Cable material recycling
WPC material grinding
Advantages for Plastic Processing Factories
Stable powder fineness
High production efficiency
Low maintenance cost
Long service life
Easy operation
Continuous industrial production support
FAQ
What materials can this pulverizer process?
The machine is mainly designed for PVC materials, including rigid PVC, soft PVC, PVC scraps, and recycled PVC materials.
What is the powder size range?
The final powder size is between 20-80 mesh.
What is the production capacity?
The output capacity is approximately 150-200 kg/h depending on the material condition.
Can the machine be customized?
Yes. Voltage, motor brand, and some machine configurations can be customized according to customer requirements.
Do you provide installation support?
Yes. We provide technical support, machine installation guidance, and after-sales service.
