The PE Spiral Corrugated Pipe Production Line is designed for the continuous production of PE spiral corrugated pipes. The production line uses an SJ75/33 single screw extruder together with a specialized spiral pipe forming system to produce pipes with a flexible structure and corrugated outer surface.
PE Spiral Corrugated Pipe Production Line
The PE Spiral Corrugated Pipe Production Line is designed for the continuous production of PE spiral corrugated pipes. The production line uses an SJ75/33 single screw extruder together with a specialized spiral pipe forming system to produce pipes with a flexible structure and corrugated outer surface.
The complete production line includes an SJ75/33 single screw extruder, electrical control system, die head and mold, carbon pipe forming machine, haul-off machine, and coiling machine. The production capacity is approximately 140–160 kg/h, making this PE spiral corrugated pipe machine suitable for medium-scale pipe production.
PE Spiral Corrugated Pipe Production Line Configuration
The complete PE spiral corrugated pipe production line consists of the following main equipment:
1. SJ75/33 Single Screw Extruder
The SJ75/33 single screw extruder is the main extrusion equipment of the production line. PE raw materials are heated, melted, plasticized, and continuously extruded through the extruder.
The extruder provides stable material output and works together with the die head and forming machine to maintain continuous pipe production.
2. Electrical Control System
The electrical control system is used to operate and coordinate the main equipment of the PE spiral corrugated pipe production line.
The control cabinet allows the operator to control important production parameters such as extrusion speed, forming speed, and haul-off speed, helping maintain stable production.

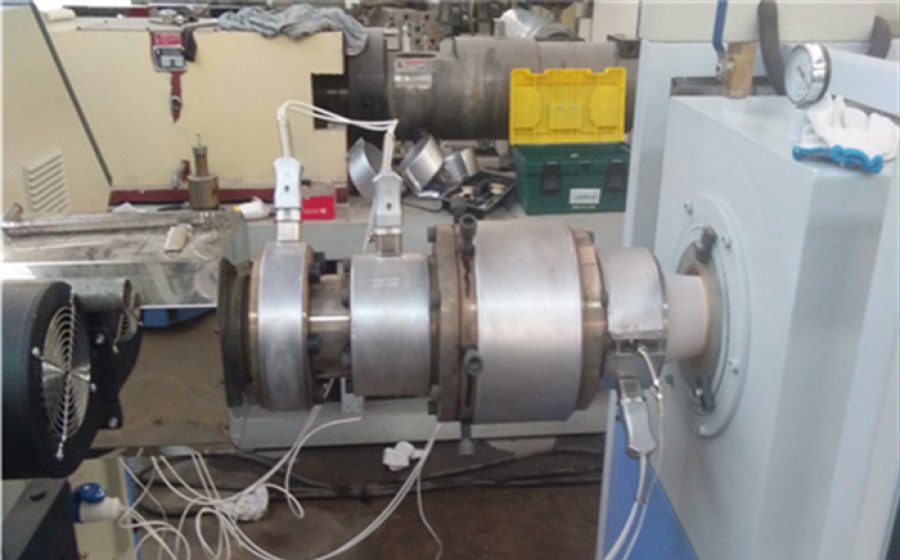

3. Die Head and Spiral Mold
The die head and spiral mold are specially designed for forming PE spiral corrugated pipes.
After the PE material is plasticized by the extruder, it passes through the die head and enters the forming system. The mold helps form the required spiral corrugated structure of the pipe.

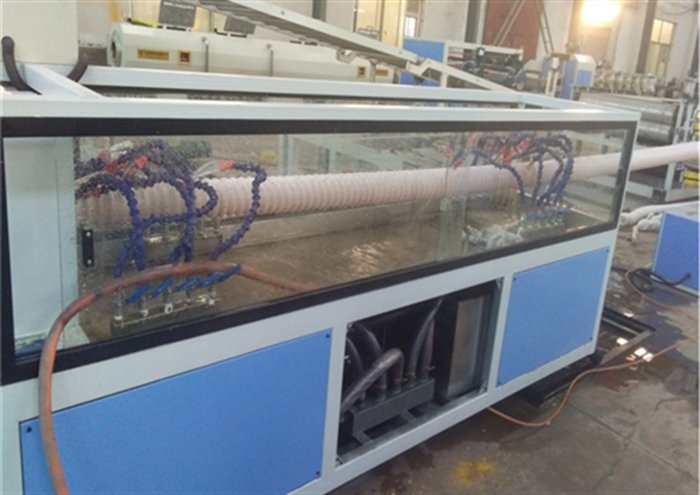

4. Carbon Pipe Forming Machine
The carbon pipe forming machine is used to form the spiral corrugated structure of the pipe.
It works continuously with the extrusion system and mold to form the PE material into a spiral corrugated pipe. The forming process directly affects the appearance and dimensional stability of the finished pipe.
5. Haul-Off Machine
The haul-off machine provides continuous and stable traction during pipe production.
By coordinating the traction speed with the extrusion and forming speed, the machine helps maintain consistent pipe production and stable product quality.

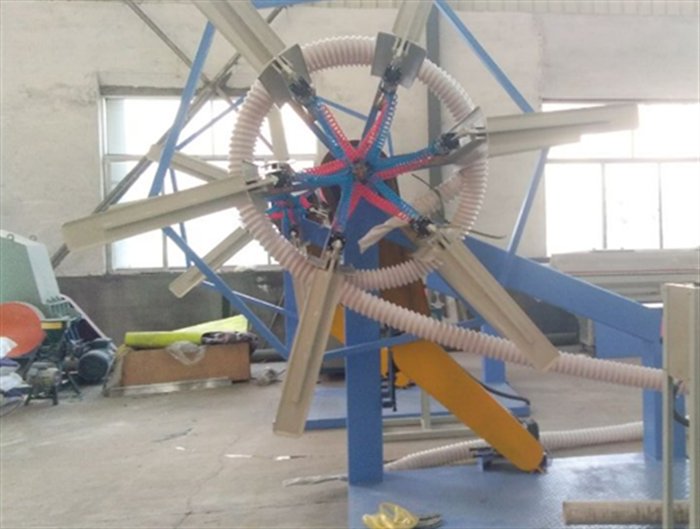

6. Coiling Machine
The coiling machine is used to collect the finished PE spiral corrugated pipe.
The pipe is automatically wound into coils, which makes the finished product easier to handle, store, and transport.
Technical Parameters
| Item | Specification |
|---|---|
| Product | PE Spiral Corrugated Pipe |
| Extruder Model | SJ75/33 |
| Extruder Type | Single Screw Extruder |
| Production Capacity | 140–160 kg/h |
| Forming System | Spiral Corrugated Forming |
| Control System | Electrical Control Cabinet |
| Pipe Collection | Coiling Machine |
| Production Type | Continuous Production |
The actual production capacity may vary depending on raw material, pipe specifications, formulation, and production conditions.
PE Spiral Corrugated Pipe Production Process
The production process of the PE spiral corrugated pipe production line is mainly as follows:
PE Raw Material → SJ75/33 Extruder → Die Head & Spiral Mold → Carbon Pipe Forming Machine → Haul-Off Machine → Coiling Machine
First, PE raw materials are fed into the SJ75/33 single screw extruder. The material is heated and plasticized inside the extruder before being continuously pushed toward the die head.
The melted PE material then passes through the die head and spiral mold. The carbon pipe forming machine shapes the material into the required spiral corrugated structure.
The haul-off machine provides stable traction during the forming process. After the pipe is formed and cooled, the coiling machine collects the finished PE spiral corrugated pipe into coils.
Applications of PE Spiral Corrugated Pipe
PE spiral corrugated pipes can be used in different applications where flexibility, lightweight construction, and corrugated pipe structure are required.
Typical applications include:
Drainage systems
Water discharge
Agricultural drainage
Cable protection
Industrial drainage
Underground pipe applications
Other flexible PE pipe applications
The final pipe application depends on the pipe structure, diameter, material formulation, and customer's technical requirements.
Advantages of the PE Spiral Corrugated Pipe Production Line
Stable Production Capacity
The line is equipped with an SJ75/33 single screw extruder and is designed for a production capacity of approximately 140–160 kg/h.
Continuous Production
The extrusion, forming, traction, and coiling systems work together to achieve continuous PE spiral corrugated pipe production.
Specialized Spiral Forming System
The die head, spiral mold, and forming machine are designed to work together to create the spiral corrugated structure of the finished pipe.
Easy Product Collection
The coiling machine automatically collects the finished pipe into coils, reducing manual handling and making transportation more convenient.
Complete Production Line
The complete line integrates extrusion, forming, traction, and coiling equipment, allowing customers to purchase a complete PE spiral corrugated pipe production solution.
Why Choose Our PE Spiral Corrugated Pipe Machine?
Choosing the correct PE spiral corrugated pipe production line depends on the required pipe specifications, production capacity, raw material, and final application.
As a plastic machinery manufacturer, we can provide a complete production line according to the customer's requirements. Before quotation, we normally confirm the required pipe diameter, material, production capacity, power supply, and final application.
We can also provide technical support for equipment installation, commissioning, and operator training.
Frequently Asked Questions
What is the production capacity of this PE spiral corrugated pipe production line?
The standard production capacity of this line is approximately 140–160 kg/h. The actual output may vary according to raw material, pipe specifications, and production conditions.
What extruder is used for the PE spiral corrugated pipe machine?
This production line uses an SJ75/33 single screw extruder as the main extrusion machine.
What equipment is included in the complete production line?
The main equipment includes an SJ75/33 single screw extruder, electrical control system, die head and spiral mold, carbon pipe forming machine, haul-off machine, and coiling machine.
What materials can be used?
The machine is designed mainly for PE (polyethylene) materials. The specific raw material formulation should be confirmed according to the required pipe application and product specifications.
Can the production line be customized?
Yes. The production line can be configured according to the customer's required pipe specifications, production capacity, raw material, and application.
What information should I provide when asking for a quotation?
For an accurate quotation, please provide the pipe diameter, pipe type, required output, raw material, application, and power supply if available.
